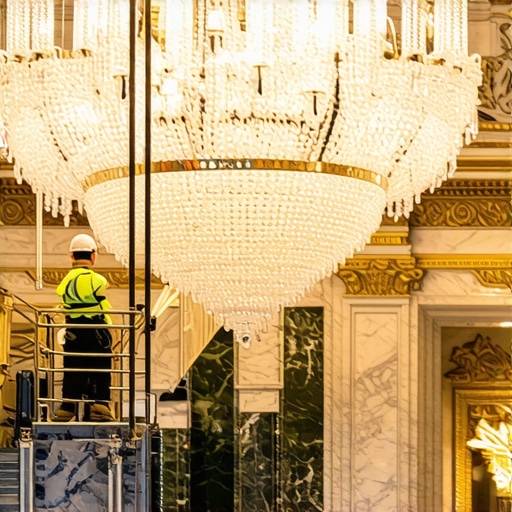

The Gravity of the Situation: Why Chandelier Installation Isn’t a DIY Hobby
You see a 200-pound crystal masterpiece. I see a potential kinetic energy disaster waiting for one bad thread or a single loose screw. When you are hanging a chandelier in a grand hall, you aren’t just doing pendant light hanging; you are performing structural engineering and high-voltage management. Most people think about the aesthetics, but they ignore the physics of mechanical failure and the terrifying reality of arcing inside a ceiling box. I’ve spent three decades looking at the aftermath of ‘handyman’ installs where a 50-pound fixture was held up by a standard plastic box rated for a light bulb. The result? Cracked plaster, scorched wires, and a hole in the floor. Before you even think about the trim-out, you have to respect the load.
“Aluminum wire connections can overheat and cause a fire without tripping the circuit breaker.” – CPSC Safety Alert 516
My old journeyman used to smack my hand with a pair of dikes if I ever used a pocket knife to strip a wire. ‘You nick that copper, you create a microscopic stress point,’ he’d bark. ‘That’s where the heat builds up, that’s where the resistance starts, and that’s how you burn a mansion down.’ He was right. In a grand hall, where the home run might stretch 100 feet back to the panel, every connection is a potential point of failure. If you’re working in an older home, you’re likely dealing with insulation that turns to dust the moment you touch it. You can’t just slap a new fixture on 70-year-old wire and hope for the best. You need a comprehensive electrical troubleshooting approach to ensure the existing infrastructure can handle the new demand.
The Forensic Breakdown: Component Zooming on the Junction Box
Let’s talk about the physics of ‘Cold Creep’ and thermal expansion. When you energize a massive chandelier, those bulbs generate heat. That heat travels up the brass stem and into the junction box. If you used inferior connectors or failed to torque the lugs, the metal expands and contracts. Over time, the wire pulls away from the terminal. This is where a ‘tick tracer’ (non-contact voltage detector) won’t help you; the circuit might be ‘live,’ but the connection is ‘loose.’ A loose connection is an arcing connection. I’ve seen boxes where the wire nuts had melted into a single glob of ‘monkey shit’ (duct seal used incorrectly or just melted plastic) because the resistance was so high it acted like a space heater inside the ceiling. This is why electrical safety audits are non-negotiable for high-end installs.
The structural support is the next failure point. A grand hall chandelier requires a heavy-duty fan box or a custom-welded steel bracket bolted directly to the joists. We don’t trust the ‘butterfly’ anchors. We use through-bolts with oversized washers to distribute the shear force. If the house has a microgrid integration or advanced automation, the ‘inrush current’ when you flip the switch can be significant. You need to ensure the circuit isn’t already shared with garage wiring services or a heavy appliance. I always recommend a dedicated circuit for any fixture weighing over 50 pounds to avoid ‘nuisance tripping’ and to maintain the integrity of the equipotential grid.
Coastal Corrosion and the Salt Bridge Phenomenon
If your grand hall is near the water, you have a silent enemy: salt air. In my years doing boat lift wiring and coastal electrical wiring services, I’ve seen salt bridge the gap between two phases inside a seemingly sealed canopy. The salt creates a conductive path, leading to a slow-burn arc that won’t trip a standard breaker but will carbonize the mounting plate. This is why we use dielectric grease on every connection and insist on stainless steel or brass hardware. We also look at vibration analysis services if the home is near a seawall or heavy traffic. Vibrations back out screws. A screw that backs out 1/16th of an inch is a fire hazard. We use thread-locking compounds and star washers to fight the ‘widow maker’ of mechanical loosening.
The Technical Fix: Why the ‘Wiggy’ Doesn’t Lie
When I’m testing a new pendant light hanging or a massive chandelier, I don’t just check for 120 volts. I use a ‘Wiggy’ (solenoid voltmeter) because it puts a small load on the circuit. If there’s a high-resistance ‘phantom’ connection, the Wiggy will tell me. Digital meters can be fooled by ‘ghost voltage,’ but a solenoid tester tells the truth. We also check the grounding electrode install for the entire home. If your house ground is weak, your expensive chandelier becomes the easiest path to earth for a lightning strike or a utility surge. For those with a proper lighting installation guide, the focus is always on the ‘rough-in’ quality. If the rough-in is sloppy, the trim-out will be dangerous.
“Ensure all equipment grounding conductors are bonded to the metal box and the fixture to prevent electric shock.” – NFPA 70E Standard
If you’re upgrading to a modern LED-integrated chandelier, don’t assume the old dimmer works. Using an old TRIAC dimmer with a modern driver is a recipe for flickering, buzzing, and premature driver failure. This is often where people search for troubleshooting tips, but for lighting, it’s about matching the load type to the control. If you have a priority service membership, you know that we check these compatibility issues before we ever climb the ladder. It’s about the long game—safety over speed.
Final Walkthrough: Torque, Tension, and Peace of Mind
In the end, you want to look up at that light and see beauty. I want to look up and know that the 1/4-inch steel cable is swaged correctly and that the Romex isn’t pinched against a sharp metal edge. Electricity isn’t a hobby; it’s a force of nature we’ve managed to put inside copper pipes. Treat it with the respect it deserves, or it will find a way to remind you why I’m so paranoid. Whether you’re looking for EV charging station setup or a grand hall lighting overhaul, the principles of Ohm’s Law and mechanical tension remain the same. Don’t let a handyman turn your dream home into a forensic site. Get it torqued, get it grounded, and sleep through the night.
